K-PO TX-101A | SWR / Power Meter | 1.6 to 60 MHz
The K-PO TX-101A is a precision SWR and power cross-needle meter covering 1.6 to 60 MHz, making it ideal for operators who need accurate readings across multiple bands. It spans all the main HF amateur bands (160m through 10m), the WARC bands (30m, 17m, 12m), the CB/11m band, and the 6m band.

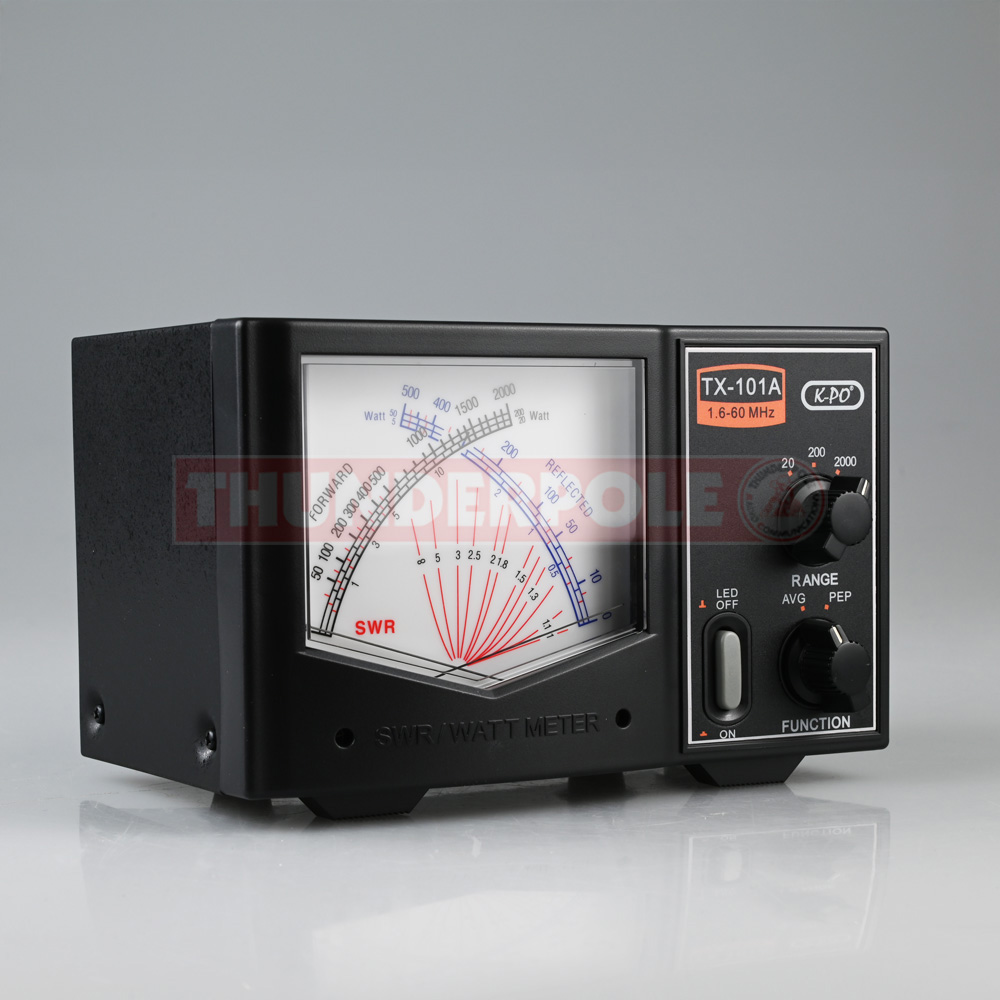

The large backlit display clearly shows Forward Power, Reflected Power, and SWR simultaneously. With its AVG/PEP switch you can easily select between average power (AVG) and Peak Envelope Power (PEP), ensuring accurate monitoring for both SSB and AM transmissions.
K-PO TX-101A FREQUENCY COVERAGE
| Band | Frequency Range |
|---|---|
| 160m | 1.8 – 2.0 MHz |
| 80m | 3.5 – 4.0 MHz |
| 40m | 7.0 – 7.3 MHz |
| 30m | 10.1 – 10.15 MHz |
| 20m | 14.0 – 14.35 MHz |
| 17m | 18.06 – 18.16 MHz |
| 15m | 21.0 – 21.45 MHz |
| 12m | 24.89 – 24.99 MHz |
| 11m / CB | 26.96 – 27.41 MHz |
| 10m | 28.0 – 29.7 MHz |
| 6m | 50.0 – 54.0 MHz |
INCLUDED WITH YOUR K-PO TX-101A
- K-PO TX-101A SWR / Power Meter
- User Manual

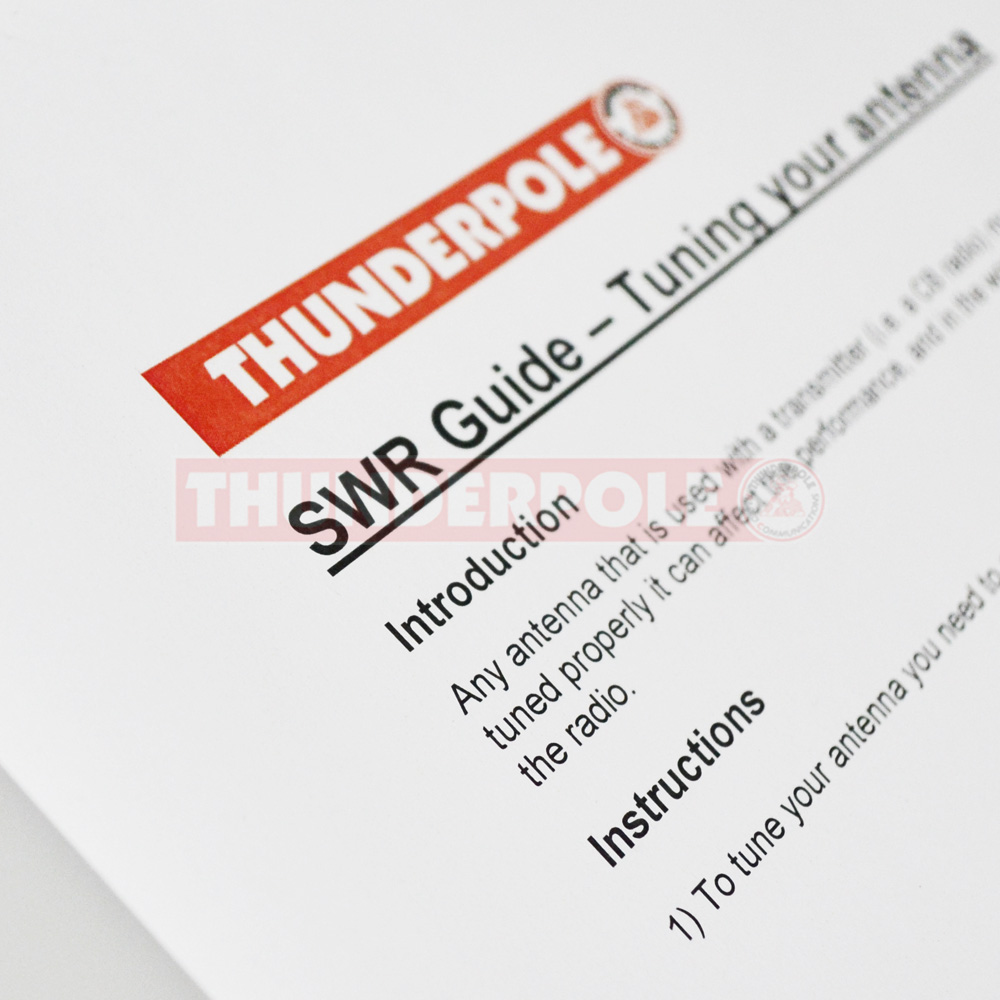

- Aerial Tuning Guide
MAIN FEATURES
- Frequency range: 1.6 – 60 MHz
- Power range: 20 / 200 / 2000 Watts
- Accuracy: ± 10% of Full Scale or better
- Minimum Power for SWR: 1 Watt
- Impedance: 50 Ohm

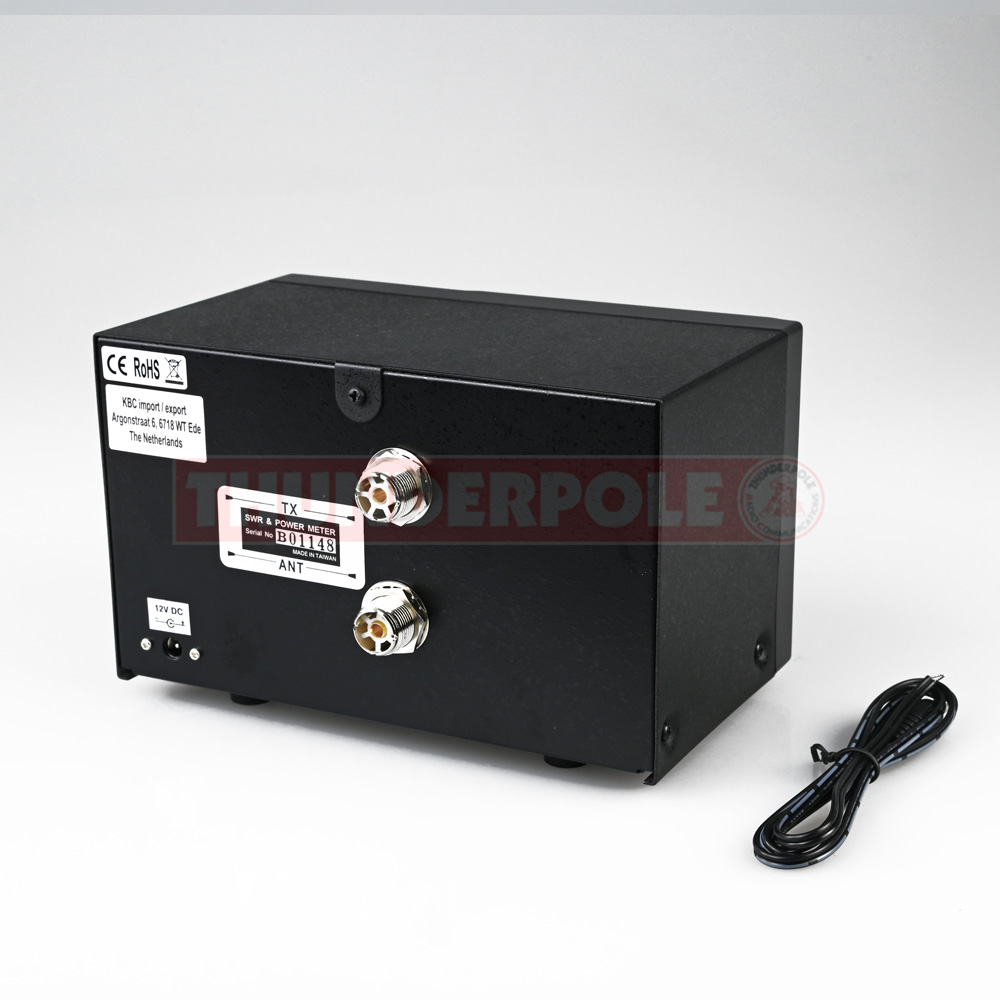

- Input connector: UHF (PL) female
- Output connector: UHF (PL) female
- Backlight display / meter: Yes
- Weight: 900 gram
- Dimensions (W x H): 184 mm x 118 mm
