K-PO TX-402 | SWR / Power Meter | 125 to 525 MHz
The K-PO TX-402 is a highly accurate SWR and power cross-needle meter covering 125 to 525 MHz, making it ideal for operators who need precision readings across VHF and UHF bands. It covers the 2m and 70cm amateur bands, as well as other VHF/UHF frequencies.

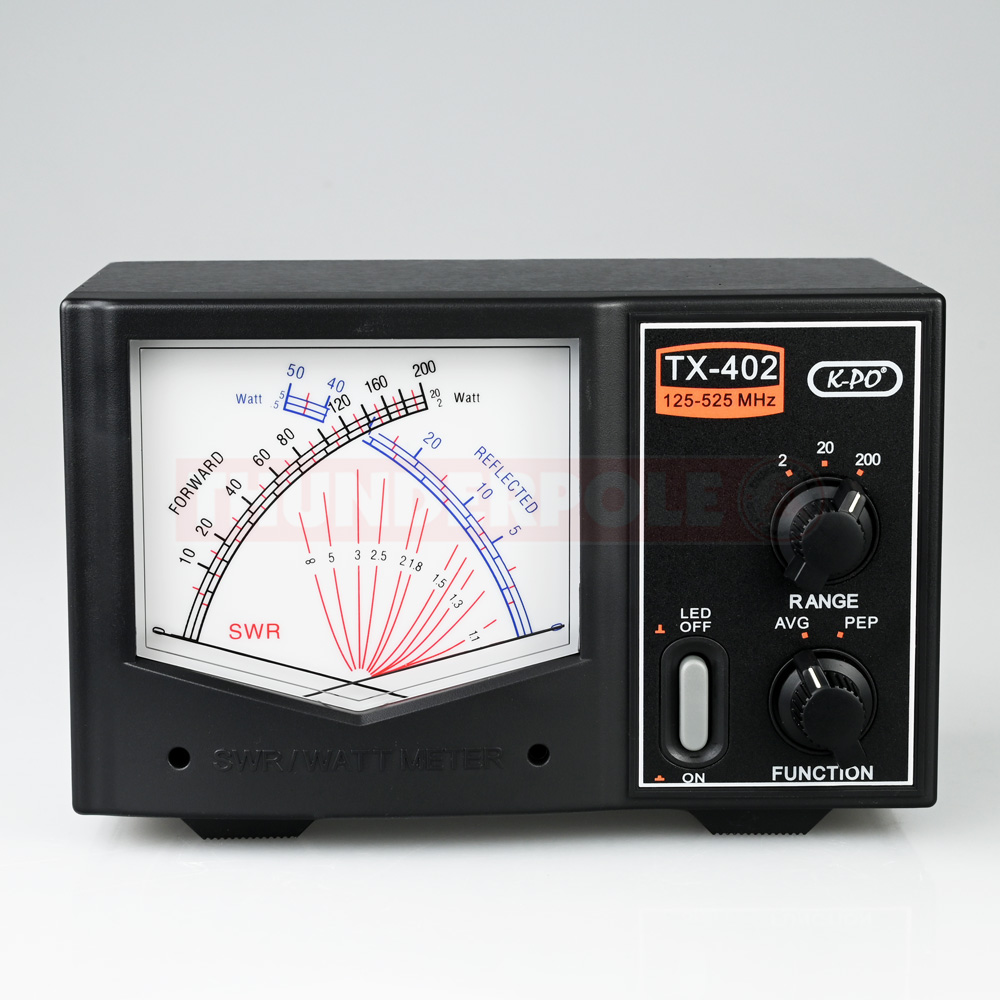

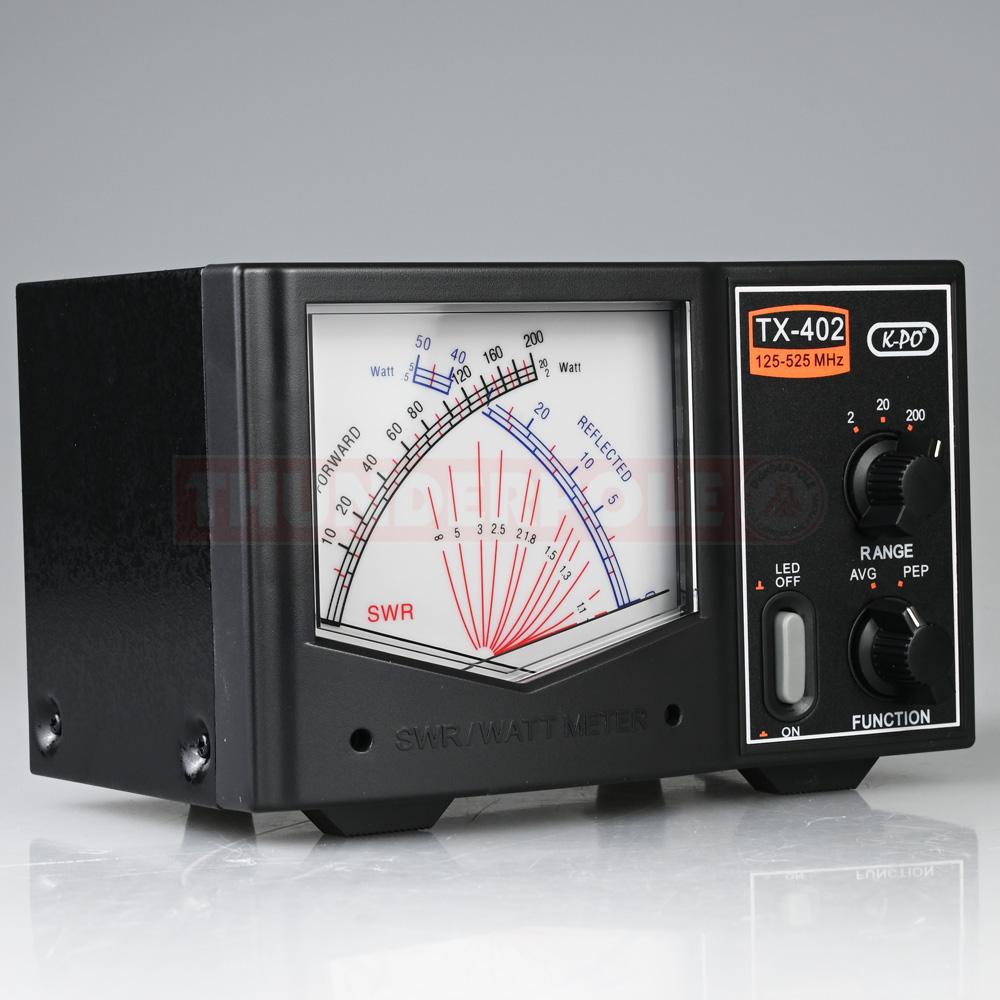

The large backlit cross-needle display makes it easy to read Forward Power, Reflected Power, and SWR all at once. With its AVG/PEP switch you can easily select between average power (AVG) and Peak Envelope Power (PEP), ensuring accurate monitoring for both SSB and AM transmissions.
The K-PO TX-402 supports up to 200 Watt of peak power (short time), ensuring reliable performance.
Made by Nissei, Taiwan.
K-PO TX-402 FREQUENCY COVERAGE
| Band | Frequency Range |
|---|---|
| 2m | 144.0 – 148.0 MHz |
| 70cm | 430.0 – 440.0 MHz |
INCLUDED WITH YOUR K-PO TX-402
- K-PO TX-402 SWR / Power Meter
- User Manual

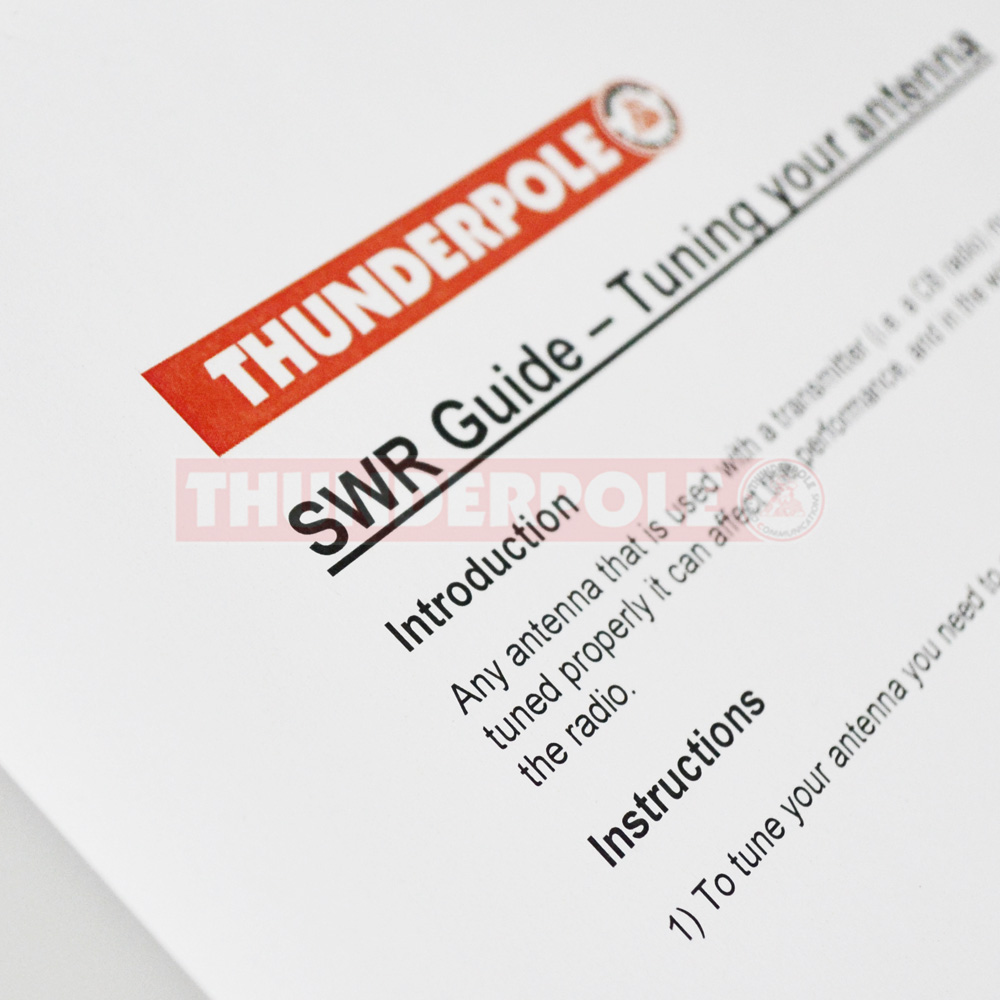

Aerial Tuning Guide
MAIN FEATURES
- Frequency Range: 125 – 525 MHz
- Power Range: 2 / 20 / 200 Watts
- Accuracy: ± 10% of Full Scale or better
- Minimum Power for SWR: 1 Watt
- Impedance: 50 Ohm

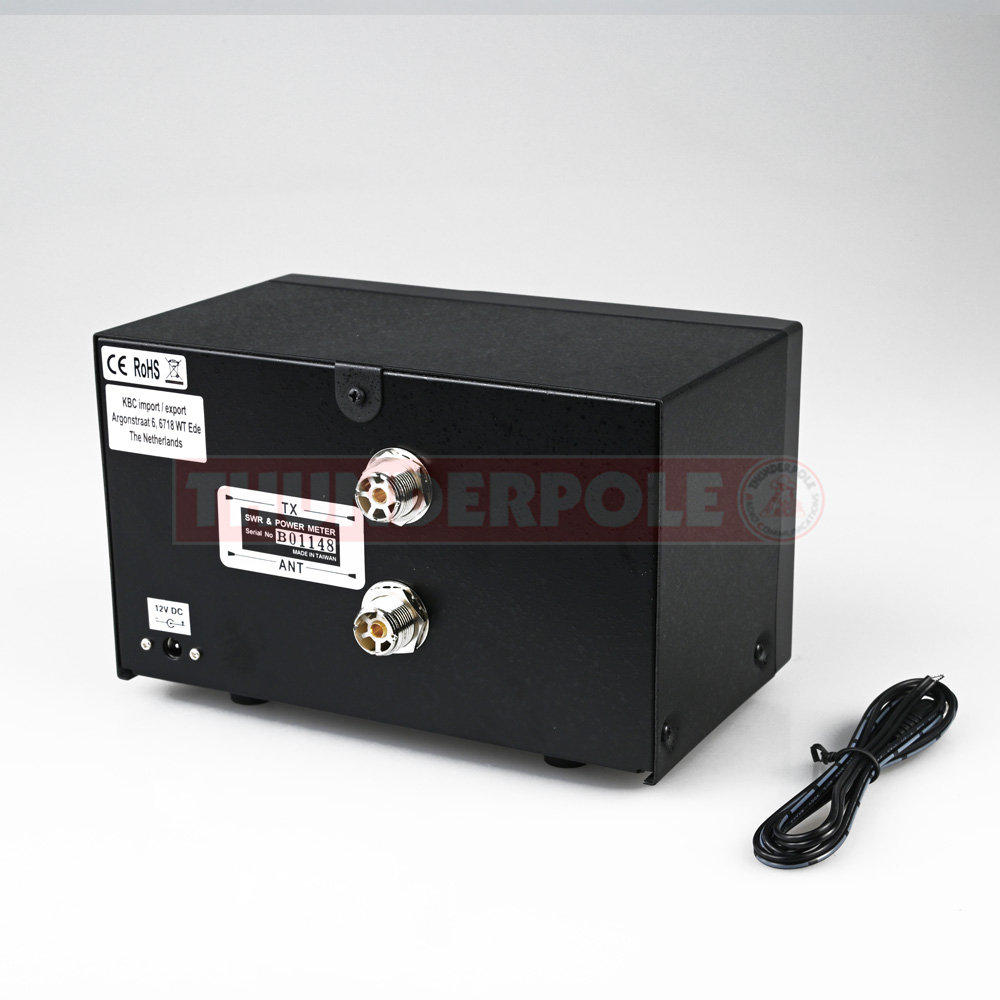

- Input Connector: UHF (PL) female
- Output Connector: UHF (PL) female
- Backlit Display: Yes
- Weight: 910 g
- Dimensions (W x H): 184 mm x 118 mm
